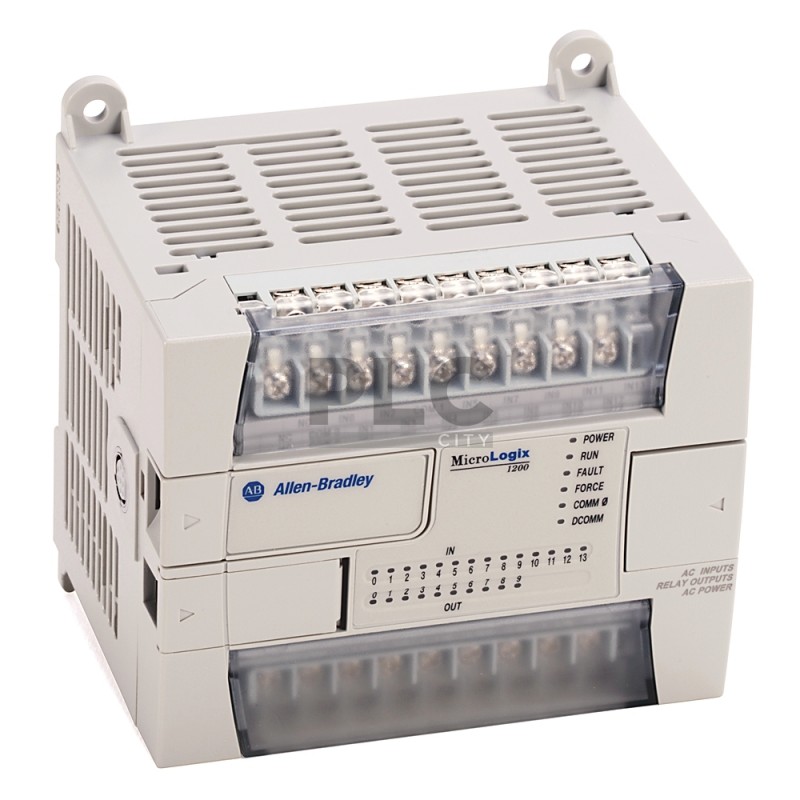

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (20) standard 24V dc and (4) fast 24V dc digital inputs, (8) relay outputs, (7) standard 24V dc FET outputs, (1) fast 24V dc FET output
- Description
- Type - Controller
- Special Features - 1 HSC, 1 PTO/PWM, Up to 6 Expansion I/O
- Width - 160
- Number Of Channels - 24 I/P, 16 O/P
- Input Signal - 24V DC
- Output Signal - (8) Relay and (8) 24V DC FET
- Interface - RS-232C Port
- Power Supply - 24V DC
- Height - 90
- Depth - 87
- Enclosure - IP20
- Mounting - DIN Rail, Panel Mount
- Communication - DF1, DH-485, Modbus RTU, ASCII
- Display - No
- Memory - 6 KB
- Operating Temperature - 0... 55 °C (32...131 °F)
- Sub Brand - MicroLogix 1200
- Standard - c-UL-us CL1DIV2, CE, C-Tick, KCC
