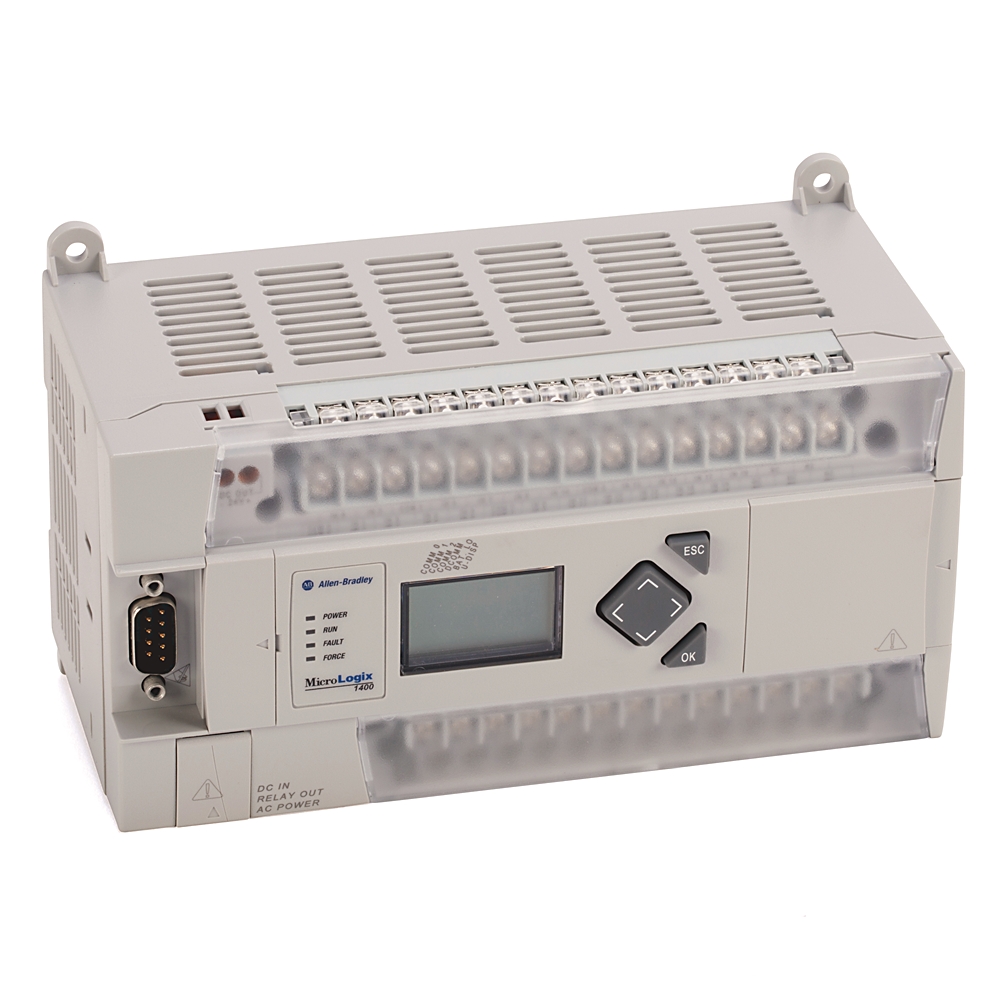

MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power

  • Description
  • Type - Controller
  • Special Features - Built-in RTC, Online Editing, Up to 7 Expansion I/O
  • Input Signal - 120 V AC
  • Output Signal - Relay
  • Power Supply - 120/240V AC
  • Embedded Analog - (4) Voltage Inputs / (2) Voltage Outputs
  • Number Of Channels - 20 I/P, 12 O/P
  • Communication - DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
  • Enclosure - IP20
  • Display - Yes
  • Memory - 20 KB
  • Interface - Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports.
  • Mounting - DIN Rail, Panel Mount
  • Height - 90
  • Width - 180
  • Depth - 87
  • Sub Brand - MicroLogix 1400
  • Standard - c-UL-us CL1DIV2, CE, C-Tick, KCC
  • Operating Temperature :- -20... 60 °C (-4...140 °F)
