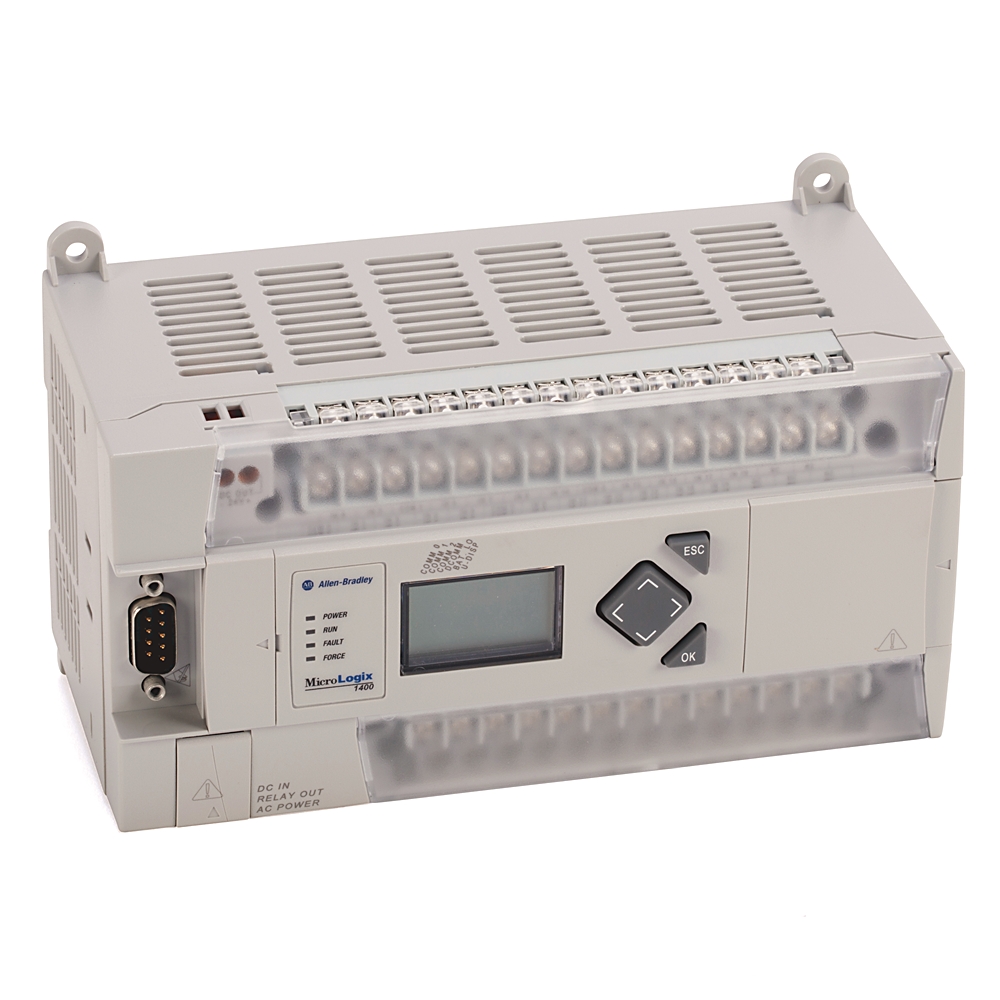

MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 24V dc power
- Description
- Type - Controller
- Special Features - Built-in RTC, Online Editing, 6 HSC, 3 PTO/PWM, Up to 7 Expansion I/O
- Input Signal - 24V DC
- Output Signal - (6) Relay and (6) 24V DC FET
- Power Supply - 24V DC
- Embedded Analog - None
- Number Of Channels - 20 I/P, 12 O/P
- Communication - DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
- Enclosure - IP20
- Display - Yes
- Memory - 20 KB
- Interface - Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports.
- Mounting - DIN Rail, Panel Mount
- Height - 90
- Width - 180
- Depth - 87
- Sub Brand - MicroLogix 1400
- Standard - c-UL-us CL1DIV2, CE, C-Tick, KCC
- Operating Temperature :- -20... 60 °C (-4...140 °F)
