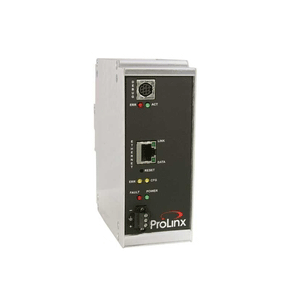

5201-DFNT-104S ProSoft Technology EtherNet/IP to IEC Server Gateway

The ProLinx EtherNet/IP to IEC60870-5-104 Server Gateway creates a powerful connection between an EtherNet/IP network and IEC 104 client devices. This stand-alone DIN-rail mounted protocol gateway provides one Ethernet port.

The EtherNet/IP protocol driver supports the Explicit Messaging implementation of the protocol. User-configurable as both a Client and a Server, the EtherNet/IP port is a very powerful data transfer tool.

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 500 mA max @ 32 VDC max
• Operating Temperature :: -4° F to 122° F (-20° C to 50° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (with no condensation )
• Dimensions - Standard: 5.20 in H x 2.07 in W x 4.52 in D (13.2 cm x 5.25 cm x 11.48 cm)
• Extended: 5.20 in H x 2.73 in W x 4.52 in D (13.2 cm x 6.934 cm x 11.48 cm)
• LED Indicators - Power and Module Status Application Status Serial Port Activity Serial Port Error Status
• Configuration Serial Port - DB-9M RS-232 only
• No hardware handshaking
