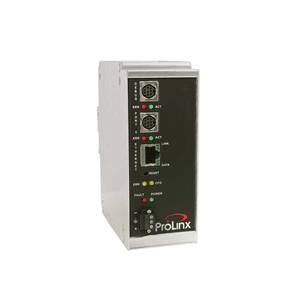

5201-DFNT-ASCII ProSoft Technology EtherNet/IP to ASCII Gateway

The ProLinx EtherNet/IP to ASCII Generic Serial Gateway creates a powerful connection between devices on an EtherNet/IP network and ASCII devices. This stand-alone DIN-rail mounted protocol gateway provides a single Ethernet port and up to four ASCII configurable serial ports. The EtherNet/IP protocol driver supports the Explicit Messaging implementation of the protocol. User-configurable as both a Client and a Server, the EtherNet/IP port is a very powerful data transfer tool. The ASCII protocol driver permits the module to interface to many ASCII devices. Each ASCII port on the module is configurable to send and/or receive ASCII strings, each supporting its own individual serial network.

Features and Benefits
The DFNT-ASCII modules are the ideal solution for the many applications where EtherNet/IP connectivity can be used to integrate ASCII serial devices into a system. The EtherNet/IP gateway is a powerful module designed with both Client and Server support, enabling easy connection to Rockwell Automation PLCs (CLX, SLC, PLC, CPLX, and similar devices). In combination with the ASCII device support, the module provides a very powerful interface to the many ASCII devices which are in use in the industrial marketplace today. Applications for the module are found in most industries, especially Manufacturing, Oil and Gas, Electrical Power and Food Processing.

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 500 mA max @ 32 VDC max
• Operating Temperature :: -4° F to 122° F (-20° C to 50° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (with no condensation )
• Dimensions - Standard: 5.20 in H x 2.07 in W x 4.52 in D (13.2 cm x 5.25 cm x 11.48 cm)
• Extended: 5.20 in H x 2.73 in W x 4.52 in D (13.2 cm x 6.934 cm x 11.48 cm)
• LED Indicators - Power and Module Status Application Status, Serial Port Activity
• Serial Port Error Status
• Configuration Serial Port - DB-9M RS-232 only
• No hardware handshaking
