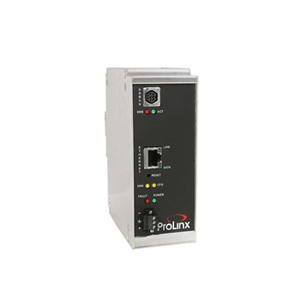

5201-MNET-EGD ProSoft Technology Modbus TCP/IP GE Gateway

The ProLinx Modbus TCP/IP to GE Ethernet Global Data Gateway creates a powerful connection between Modbus TCP/IP and GE Ethernet Global Data networks.The module provides one Ethernet port

The Modbus TCP/IP protocol driver can interface many different protocols into Schneider Electric Quantum processors as well other solutions supporting the protocol. The MNET driver supports Client and Serverconnections.
The EGD modules offer one-to-one or one-to-many interconnect scenarios. Data is exchanged betweendevices and/or networks using a shared commondatabase. This common database provides the"backbone" communications for various field devices using different networks.

Features and Benefits
- The MNET-EGD modules are the ideal solution for themany applications where Modbus TCP/IP connectivitycan be used to integrate GE Ethernet Global Datadevices into a system. The Modbus TCP/IP driver is apowerful module designed with both Client and Serversupport, enabling easy connection to other ModbusTCP/IP devices (Modicon processors and many others).In combination with the GE Ethernet Global Data devicesupport, the module provides a powerful interface to themany Modbus TCP/IP devices which are in use in theindustrial marketplace today. Applications for the moduleare found in most industries, especially Manufacturing,Oil and Gas, Electrical Power and Food Processing.

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 500 mA max @ 32 VDC max
• Operating Temperature :: -4° F to 122° F (-20° C to 50° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (with no condensation )
• Dimensions Standard: - 5.20 in H x 2.07 in W x 4.52 in D (13.2 cm x 5.25 cm x 11.48 cm)
• Extended:
• 5.20 in H x 2.73 in W x 4.52 in D (13.2 cm x 6.934 cm x 11.48 cm)
• LED Indicators - Power and Module Status, Application Status , Serial Port Activity, Serial Port Error Status
• Configuration Serial Port - DB-9M RS-232 only No hardware handshaking
