5202-DFNT-DFCM4 ProSoft Technology EtherNet/IP to DF1 Master/Slave

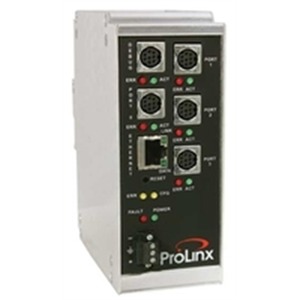

The ProLinx EtherNet/IP to DF1 Master/Slave Gateway creates a powerful connection between devices on an EtherNet/IP network and DF1 devices. This stand-alone DIN-rail mounted protocol gateway provides one Ethernet port and up to four serial ports. The EtherNet/IP protocol driver supports the Explicit Messaging implementation of the protocol. User-configurable as both a Client and a Server, the EtherNet/IP port is a very powerful data transfer tool.

The DF1 protocol driver supports Master or Slave implementations of the protocol on each DF1 port. All DF1 ports are individually configurable.

Features and Benefits
Rockwell Automation equipment that supports EPIC:
- PLC5/E rev C/N, D/E, E/D
- SLC5/05 series A, OS503 frn4
- 1785-ENET Series A, rev D
- Interchange V6.2
- MicroLogix 1100/1400/ANY via 1761-NET-ENI
- CompactLogix 1768-L43/L45 via 1768-ENBT
-CompactLogix 1769-L32E/L35E/ANY
- CompactLogix L23E
- RSLinx Gateway V1.7+
- ControlLogix 1756-ENET/ENBT/EN2T/EN2TR

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 500 mA max @ 32 VDC max
• Operating Temperature :: -4° F to 122° F (-20° C to 50° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (with no condensation )
• Dimensions - Standard: 5.20 in H x 2.07 in W x 4.52 in D (13.2 cm x 5.25 cm x 11.48 cm)
• Extended: 5.20 in H x 2.73 in W x 4.52 in D (13.2 cm x 6.934 cm x 11.48 cm)
• LED Indicators - Power and Module Status Application Status, Serial Port Activity
• Serial Port Error Status
• Configuration Serial Port - DB-9M RS-232 only
• No hardware handshaking
