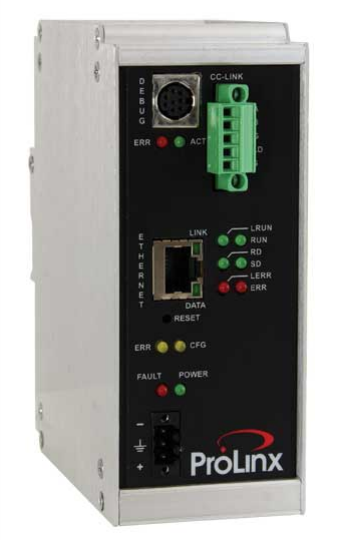

5209-DFNT-CCLINK ProSoft Technology EtherNet/IP to CC-Link Local

The ProSoft Technology's EtherNet/IP® to CC-Link communication gateway allows Rockwell Automation® control platform users to integrate CC-Link Master compatible products with existing EtherNet/IP control networks. The EtherNet/IP protocol driver supports the Explicit Messaging implementation of the protocol and is user-configurable as both a Client and/or a Server. As a Client, the gateway can send commands and manage data flow among a large number of devices on the EtherNet/IP network. As a Server, the gateway can provide concurrent data transfer to multiple Clients.

The CC-Link protocol driver acts as a Local or Intelligent Station, which enables easy connection to the CC-Link Master-controlled network for data transfer. Configuration options allow the gateway to occupy up to four (4) stations on the CC-Link network. Transient Messaging capability increases overall I/O data transfer capacity by more than 8,000 words. When configured as a Local Station, the gateway allows read-only viewing of the entire CC-Link Master cyclic database from all configured slave on the CC-Link network.

• Specifications
• EtherNet/IP
• Supported PLC Types - PLC-2®, PLC-3®, PLC-5®, SLC™500, ControlLogix™, CompactLogix™, and MicroLogix™
• Messaging Types - As a Client, PCCC Explicit Messaging, As a Server, PCCC or CIP Explicit Messaging
• Command Sets - PLC-2/PLC-3/PLC5 Basic Command Set,PLC5 Binary Command Set ,PLC5 ASCII Command Set ,SLC500 Command Set
• EtherNet/IP Server
• Miscellaneous - Binary, Integer or Floating point data supported, as well as other special data types, like timers, counters, ASCII files and more
• EtherNet/IP Server - Five independent TCP/IP Server sockets permit multiple Clients to see and change all user data contained in the gateway.
• The Server supports CIP and PCCC Explicit Message connections from EtherNet/IP Clients.
• PCCC Data File Emulation(the Server looks like an SLC 5/05 to the Clients) - Data Table File Size: 100 or 1000 words,
• Data Table File Start: - Fixed at N10 ,
• Data Table Range: N10 to N109, based on file size set to 100, or N10 to N19, based on file set
• to 1000,(Other data table types also supported)
• CIP Services Supported - 0x4C - CIP Data Table Read, 0x4D - CIP Data Table Write
