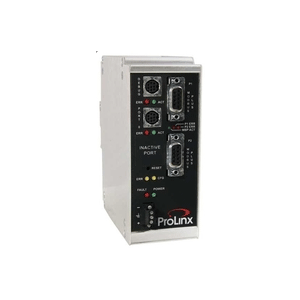

5303-MBP-DFNT ProSoft Technology Modbus Plus EtherNet/IP Gateway

The ProLinx Modbus Plus to EtherNet/IP Gateway creates a powerful connection between devices on an EtherNet/IP network and a Modbus Plus device. This stand-alone DIN-rail mounted protocol gateway provides one Modbus Plus configurable DB9F port and one Ethernet port.

The Modbus Plus protocol driver supports both Master and Slave implementations of the protocol on the DB9 Female Modbus Plus port. The Modbus Plus port is fully configurable. The EtherNet/IP protocol driver supports the Explicit Messaging implementation of the protocol. User-configurable as both a Client and a Server, the EtherNet/IP port is a very powerful data transfer tool

Features and Benefits
- The MBP-DFNT modules are the ideal solution for the many applications where EtherNet/IP connectivity can be used to integrate a Modbus Plus device into a system. The EtherNet/IP gateway is a powerful module designed with both Client and Server support, enabling easy connection to Rockwell Automation PLCs (CLX, SLC, PLC, CPLX, and similar devices). In combination with the Modbus Plus support, the module provides a very powerful interface to the many Modbus Plus devices which are in use in the industrial marketplace today. Applications for the module are found in most industries, especially the Manufacturing, Oil and Gas, Electrical Power and Food Processing. EtherNet/IP (Explicit Messaging) Compatible Devices Rockwell Automation equipment that supports EPIC:

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 500 mA max @ 32 VDC max
• Operating Temperature :: -4° F to 122° F (-20° C to 50° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (with no condensation )
• Dimensions Standard: - 5.20 in H x 2.07 in W x 4.52 in D (13.2 cm x 5.25 cm x 11.48 cm)
• Extended:
• 5.20 in H x 2.73 in W x 4.52 in D (13.2 cm x 6.934 cm x 11.48 cm)
• LED Indicators - Power and Module Status, Application Status , Serial Port Activity, Serial Port Error Status
• Configuration Serial Port - DB-9M RS-232 only No hardware handshaking
