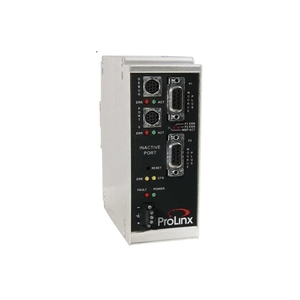

5303-MBP-MNET ProSoft Technology Modbus Plus TCP/IP Gateway

The ProLinx Modbus Plus to Modbus TCP/IP Gateway creates a powerful connection between devices on a Modbus TCP/IP network and a Modbus Plus device. This stand-alone DIN-rail mounted protocol gateway provides one Modbus Plus configurable DB9F port and one Ethernet port.

The Modbus Plus protocol driver supports both Master and Slave implementations of the protocol on the DB9 Female Modbus Plus port. The Modbus Plus port is fully configurable. The Modbus TCP/IP protocol driver can interface many different protocols into Schneider Electric Quantum processors as well other solutions supporting the protocol. The MNET driver supports Client and Server connections, and when coupled with the Web option provides a web/ftp interface as well.

Features and Benefits
- The MBP-MNET modules are the ideal solution for the many applications where Modbus TCP/IP connectivity can be used to integrate a Modbus Plus device into a system. The Modbus TCP/IP gateway is a powerful module designed with both Client and Server support, enabling easy connection to other Modbus devices (Modicon processors and many others). In combination with the Modbus Plus support, the module provides a very powerful interface to the many Modbus Plus devices which are in use in the industrial marketplace today. Applications for the module are found in most industries, especially Manufacturing, Oil and Gas, Electrical Power and Food Processing.

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 500 mA max @ 32 VDC max
• Operating Temperature :: -4° F to 122° F (-20° C to 50° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (with no condensation )
• Dimensions Standard: - 5.20 in H x 2.07 in W x 4.52 in D (13.2 cm x 5.25 cm x 11.48 cm)
• Extended:
• 5.20 in H x 2.73 in W x 4.52 in D (13.2 cm x 6.934 cm x 11.48 cm)
• LED Indicators - Power and Module Status, Application Status , Serial Port Activity, Serial Port Error Status
• Configuration Serial Port - DB-9M RS-232 only No hardware handshaking
