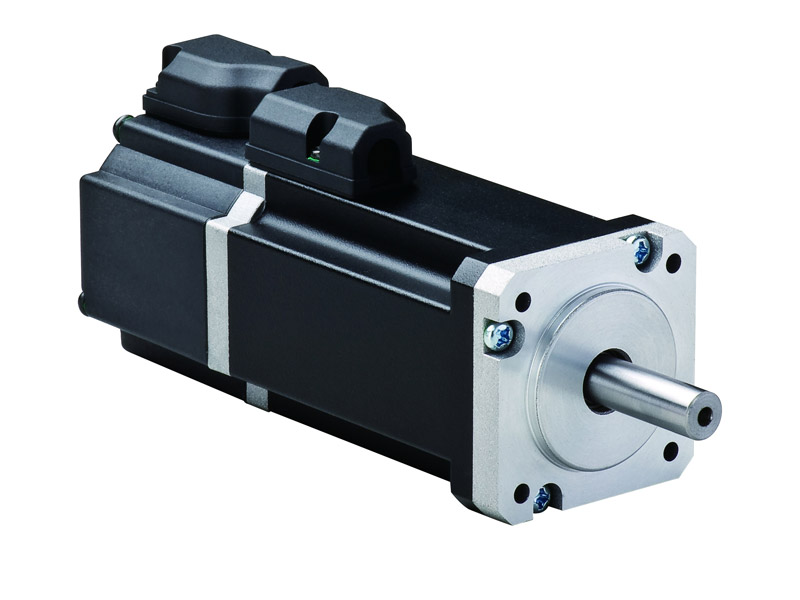

Allen-Bradley HPK High Power Servo Motors

Allen-Bradley Bulletin HPK-Series™ High-power Asynchronous Motors combine high power with precise positioning capabilities.

These motors feature windings that are optimized for servo control coupled with high-resolution feedback to provide the precision your application requires. They build on proven induction motor technology and provide high reliability and durability in demanding applications.

• Features
• High resolution feedback (up to 2 million counts per revolution)
• Optional multi-turn absolute feedback
• Motor winding provides constant torque over a wide speed range
• Low rotor inertia for higher acceleration rates
• Continuous torque of 96…955 Nm (849…8445 lb-in.)
• Peak torque of 192…1927 Nm (1699…17042 lb-in.)
• Base speeds of 1500 and 3000 RPM
• Integrates with our Kinetix® 7000 Servo Drive to extend the range of Kinetix Integrated Motion solutions up to 200 Hp (150 kW)
