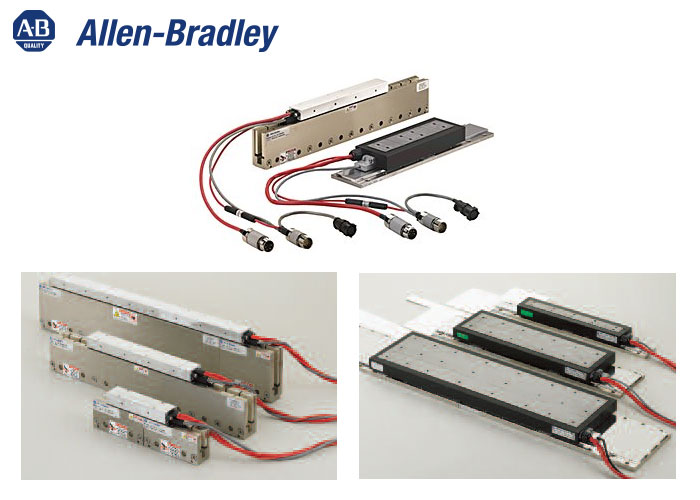

Allen-Bradley LDC-Series & LDL-Series Linear Servo Motor

Allen-Bradley Bulletin LDC-Series™ and LDL-Series™ Linear Servo Motors provide precise linear positioning at very high speeds. Direct Drive™ linear motors are connected directly to the payload that needs to be moved. This direct connection provides excellent servo responsiveness, resulting in faster settling time for any move.

The LDL-Series has an ironless design for applications that require extremely smooth motion such as scanning or printing. The LDC-Series has an iron core design with high force density, which is used with smaller, less expensive motors.

• Features
• No-wear parts such as bearings, gears, and belts
• Connects directly to the payload that needs to be moved
• Maintains quick movement while handling multiple motion profiles
• Sizes and optimizes linear motors and corresponding servo drives using Motion Analyzer software
• Full setup and programming support through RSLogix™ 5000 software (version 20 or earlier)
• Achieves precise linear positioning at very high speeds
• Provides very high speeds and acceleration for increased throughput of your machine
