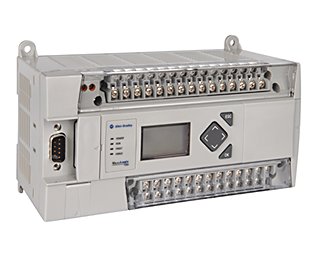

Allen-Bradley MicroLogix 1400 Programmable Logic Controller Systems

Bulletin 1766 MicroLogix™ 1400 Programmable Logic Controller Systems build upon critical MicroLogix 1100 features: EtherNet/IP™, on-line editing and a built-in LCD panel. These controllers feature a higher I/O count, faster high-speed counter, pulse train output, enhanced network capabilities and backlight on the LCD panel.

Controllers without embedded analog I/O points provide 32 digital I/O points, while analog versions offer 32 digital I/O points and 6 analog I/O points. You can expand all versions with up to seven 1762 expansion I/O modules.

• Features
• Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
• Built-in LCD with backlight lets you view controller and I/O status
• Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
• Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
• As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
• Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
• 10 KB words in user program memory with 10 KB words in user data memory)
• Up to 128 KB for data logging and 64 KB for recipe
