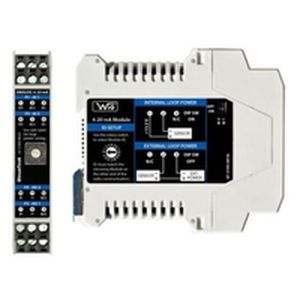

BM-A420-122x ProSoft Technology Analog I/O 4-20 mA Module

The analog 4-20mA I/O module provides two 24-bit inputs and two 16-bit outputs. The I/O modules offer 2500 V r.m.s. isolation, with a wide operating temperature range and Class I Division 2 hazardous location rating, making them ideal for demanding industrial installations.

Connect them to the wireless I/O radios for point-to-point wire replacement applications, or to the RS485 I/O Extension module to add I/O to a Modbus network.

Features and Benefits
-Easy to use: No software configuration needed
-Easy to install: Mounts onto a 35 mm DIN rail without any tools
-Failsafe: User can defines how outputs are failed over when RF or I/O communication is ever lost
-Number of Inputs: 2 (24-bit Resolution)
-Number of Outputs: 2 (16-bit Resolution)
-Isolation Voltage: 2500 V r.m.s.
-Accuracy: < 0.28 % of Full Scale
-FailSafe Modes: Last known value (Default) or Any value on scale

• Specifications
• DIN Rail Mounting Compatibility - 35 mm x 7.5 mm DIN Rail
• I/O Module Slave ID Selection - 16-Position rotary switch
• Built-In Mounting Hardware - Spring-loaded clip-on system
• Wire Gauge - Solid / Stranded (AWG) 28-12 gauge
• Wire Rating - UL: 300 V RMS, 80 °C and 300 V, 105 °C, CSA: 300 V RMS, 105 °C
• Warranty - 2-Year limited
