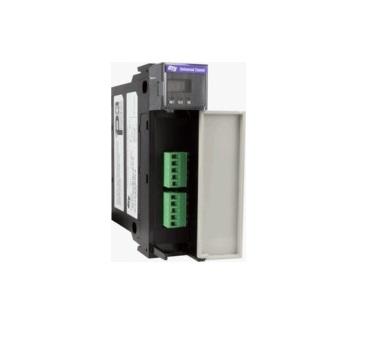

CLX-APACS ProSoft Technology ControlLogix Moore APACS Module

The CLX-APACS module enables a ControlLogix / Plant-PAx™ system to control Moore/Siemens APACS+ IO Bus remote I/O racks. This provides the ability to execute a phased migration of old Moore APACS DCS systems.

Features and Benefits
Monitor mode - Allows testing of the ControlLogix program’s execution against the ACM controller's program, in real-time
-Master mode :Allows the user to remove the APACS+ ACM controller and control the process from a ControlLogix PLC
-Supports all standard APACS+ digital and analog I/O modules
-Supports up to 39 IO Bus cards per network segment
-Automatically import the current APACS+ I/O configuration from the Siemens 4-mation software's object file
-Configuration files are downloaded to the module through RSLinx™ Classic
-Auto-configuration feature maps the APACS+ I/O data into tags in the ControlLogix processor
-Supports up to 4464 discrete points, or up to 1116 analog points, or any combination thereof
-Diagnostic data from the APACS+ network is mapped into the ControlLogix processor
-Multi-colored LED that indicates the status of the APACS+ network connection

• Specifications
• Operating Temperature - 32°F to 140°F (0 ºC to 60 ºC)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Relative Humidity - 5% to 95% (non-condensing)
• Ports - Dual Channel, Redundant Serial RS-485
• Typical Power Consumption - 5 mA @ 24 VDC and 450 mA @ 5.1 VDC
• Maximum Power Dissipation - 2.5W
