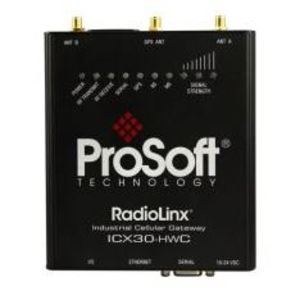

ICX30-HWC ProSoft Technology Industrial Cellular Gateway

The ICX30-HWC Industrial Cellular Gateway provides secure wireless Ethernet and serial connectivity to remote devices over 3G cellular service. These devices include PLCs, RTUs, DCS systems, instruments, electronic billboards and communication towers. Remote devices are accessed using secure VPN tunnels over Internet connections.

Features and Benefits
-Supports 3G GSM and CDMA
-Supports cellular networks worldwide
-Secure VPN connections over Internet and cellular links for remote site access to corporate networks (VPN Client Mode)
-Simultaneous Ethernet and serial data port (Modbus & DF1 encapsulation) communications providing SCADA migration path to cellular for serial and Ethernet devices
-Built-in discrete & analog I/O to remotely monitor alarm status
-Integrated GPS for location based monitoring
-Up to 14.4 Mbps for downlink and up to 5.76 Mbps Uplink speed for video monitoring applications
-EtherNet/IP™ Class 3 Server allows diagnostic data to be available in the PAC, enabling decisions to be based on cellular gateway health
- 10 to 24 VDC and PoE power options - supports common industrial power sources or PoE to reduce cabling costs

• Specifications
• Cellular Technology - CDMA, CDMA2000GSM, UMTS/WCDMA, HSPA+, GPRS, EDGE.
• Bands - CDMA2000: 800/1900 MHzGSM: 850/900/1800/1900WCDMA: 800/850/900/1900/2100
• Max Downlink Speeds - Up to 14.4 Mbps maximum (network dependent)
• Max Uplink Speeds - Up to 5.76 Mbps maximum (network dependent)
• Activation - SIM Slot (GSM), Flash Memory (CDMA)
• Security - OpenVPN, IPSec
• GPS - GPS EtherNet I/P reporting
