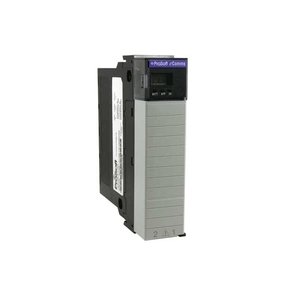

ILX56-MM ProSoft Technology Message Manager Industrial

The ProSoft Technology inRAx Message Manager is a single-slot solution that connects and transfers Factory and Plant Process Automation monitoring and control data between islands of automation across diverse platforms, networks and protocols.

The inRAx Message Manager is an easy-to-use data transfer engine for the ControlLogix 1756 platform, supporting Rockwell Automation Programmable Logic Controller (PLC) and Programmable Automation Controller (PAC) network protocols, as well as platforms and devices that use Siemens Industrial Ethernet and Modbus TCP/IP protocols.

Features and Benefits
-The Message Manager acts as a communication interface as well as a message transaction engine. The configuration utility is web-based, built into the module, used for module and network configuration, diagnostics, and uploading/downloading. PLC to PLC data transfers no longer require message programming. Setting up these transfers can be done at one location for up to 16 controllers, including various networked Rockwell Automation controllers as well as PLC/PACs that reside on either Modbus TCP/IP or Siemens Industrial Ethernet networks.

• Specifications
• Operating Temperature - 0° C to 60° C (32° F to 140° F )
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Battery - Rechargeable Lithium Vanadium Pentoxide
• Clock - Precision RTC accurate to +/- 4 minutes/year
• Display - Onboard 4-Character Alpha-numeric display
• Form Factor - Single-Slot ControlLogix Module
• Power Ratings - 1000mA @ 5 VDC, 5-Watts Max. Power Consumption
