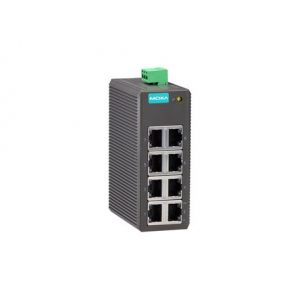

MOXA EDS-208

8-port entry-level unmanaged Ethernet switches

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.

Models :

- EDS-208

- EDS-208-M-ST

- EDS-208-M-SC

• Power Parameters
• Input Voltage - 24 VDC
• Input Current -EDS-208: 0.12 A @ 24 VDC
• EDS-208-M Series: 0.2 A @ 24 VDC
• Operating Voltage - 12 to 45 VDC
• Connection - 1 removable 3-contact terminal block(s)
• Overload Current Protection - 2.5 A @ 24 VDC
• Reverse Polarity Protection - Supported
