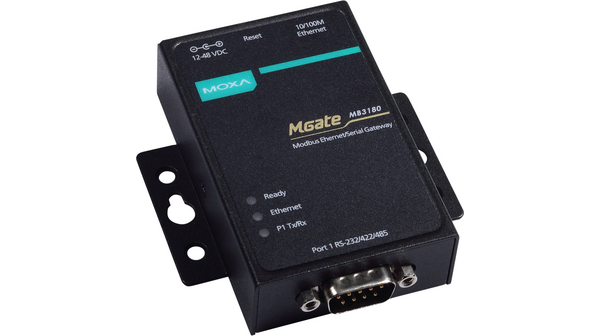

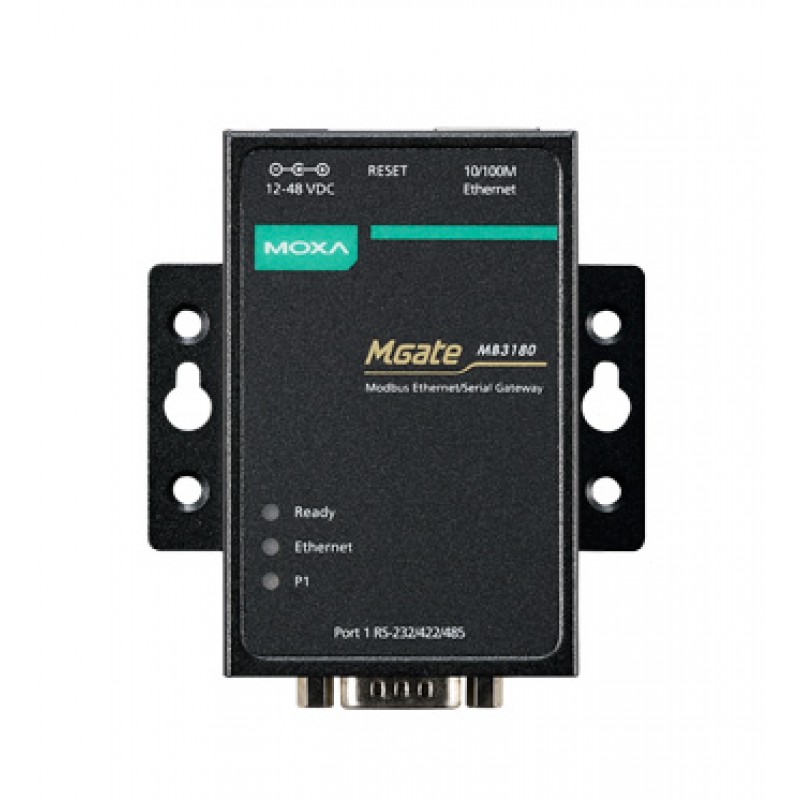

Moxa mgate mb3180

The standard MGate™ models MB3180 is designed for easy integration of Modbus TCP and RTU/ASCII networks. With these models, Modbus serial slave devices can be seamlessly incorporated into an existing Modbus TCP network, and Modbus TCP slaves can be made accessible to serial masters. The MB3180, MB3280, and MB3480 offer features that make network integration easy, customizable, and compatible with almost any Modbus network.

Features and Benefits :

- Supports Auto-Device Routing for easy configuration

- Supports route by TCP port or IP address for flexible deployment

- Convert between Modbus TCP and Modbus RTU/ASCII

- 1 Ethernet port and 1, 2, or 4 RS-232/422/485 ports

- 16 simultaneous TCP masters with up to 32 simultaneous requests per master

- Easy hardware setup and configuration

• Ethernet Interface
• Protocols Modbus TCP
• Number of Ports 1
• Speed 10/100 Mbps, Auto MDI/MDIX
• Connector 8-pin RJ45
• Magnetic Isolation Protection 1.5 kV (built-in)
• Serial Interface
• Protocol Modbus RTU/ASCII Slave/Master
• Serial Standards RS-232/422/485, software selectable
• Connectors DB9 male
• ESD Protection 15 kV for all signals
• RS-485 Data Direction Control ADDC® (automatic data direction control)
