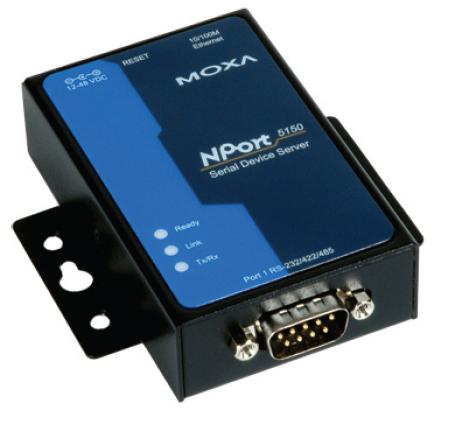

Moxa NPort 5150 1-port RS-232/422/485 Serial Device Servers

NPort 5100 series device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 series device servers to give your PC software direct access to serial devices from anywhere on the network.

Features and Benefits

-Small size for easy installation

-Real COM/TTY drivers for Windows and Linux

-Standard TCP/IP interface and versatile operation modes

-Easy-to-use Windows utility for configuring multiple device servers

-SNMP MIB-II for network management

-Configure by Telnet, web browser, or Windows utility

-Adjustable pull high/low resistor for RS-485 ports

• Ethernet Interface
• Number of Ports - 1
• Speed - 10/100 Mbps, auto MDI/MDIX
• Connector - 8-pin RJ45
• Magnetic Isolation Protection - 1.5 kV built-in
• Serial Interface
• Number of Ports - 1
• Serial Standards - NPort 5150: RS-232/422/485
• Connector - DB9 male
• RS-485 Data Direction Control - ADDC® (Automatic Data Direction Control)
• Pull High/Low Resistor for RS-485 - 1 kΩ, 150 kΩ
• Ethernet Interface
• Input Voltage - 12 to 48 VDC
• Input Current - NPort 5150: 200 mA @ 12 VDC
