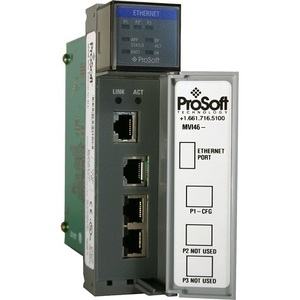

MVI46-104S ProSoft Technology IEC 60870-5-104 Ethernet Server Module

The MVI46 IEC 60870-5-104 Server Network Interface Module allows SLC processors to interface easily with IEC 60870-5-104 protocol-compatible hosts. The MVI46-104S module has been designed to address applications where a device using the IEC 60870-5-104 protocol needs to communicate with a SLC processor. Functionality of the IEC protocol is very similar to the DNP 3.0 protocol which features time stamping and True Report by Exception (TRBE). These features allow the MVI46-104S module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The MVI46-104S module acts as an input/output module between the IEC-870-5-104 Ethernet network and the SLC backplane. Data transfer between the module and the processor is asynchronous from the actions on the network. Databases are defined by the user for the module to hold data as required by the protocol.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• Configuration Connector - RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit)
• Ethernet Port (Ethernet Modules) - RJ45 Connector, Link and activity LED indicators, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
