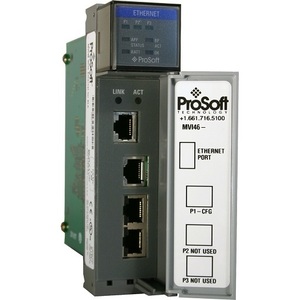

MVI46-ADMNET ProSoft Technology ‘C’ Programmable with Ethernet

The MVI46 Application Development Ethernet Communication Module is an SLC backplane compatible module that allows SLC processors to interface easily with Ethernet protocol compatible devices and hosts utilizing custom 'C' code.

Features and Benefits
-The ADMNET solution is a powerful module designed with both Client and Server support. This broad support enables the module to function as a data collection sub-master, or to be a powerful slave as a remote off an HMI host. Applications for the module are found in most industries, especially Manufacturing, Oil and Gas, Electrical Power and Food processing. -The MVI46-ADMNET module is a single slot, backplane compatible solution for the SLC platform. This module is a powerful and programmable solution supporting two fully isolated serial ports and one Ethernet port allowing the many field devices to be integrated into the SLC platform with custom user written 'C' code and various APIs supplied for Ethernet, serial and backplane communication.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• Configuration Connector - RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit)
• Ethernet Port (Ethernet Modules) - RJ45 Connector, Link and activity LED indicators, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
