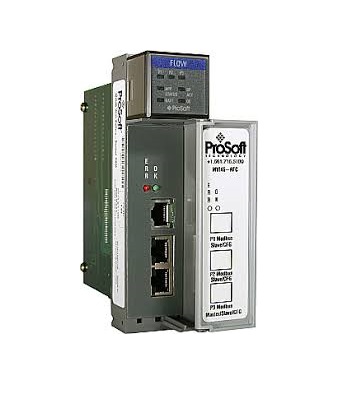

MVI46-AFC ProSoft Technology Gas & Liquid Flow Computer for SLC

The MVI46 Gas and Liquid Flow Computer Module is an SLC backplane compatible module that allows SLC processors to easily support flow applications with 8 meter runs performing measurement of hydrocarbon gases or liquids using AGA 3, 7, 8 and API MPMS Chapters 11 and 12 measurement standards.

Features and Benefits
-The MVI46-AFC is an in-rack Gas and Liquid Flow Computer Module for the SLC platform. The MVI46-AFC Flow Computer module supports 8 meter channels for the measurement of hydrocarbon gases and liquids using currently accepted industry measurement standards.The module calculates flow rates, accumulated volumes, accumulated mass and accumulated energy (heating value). The calculation results are transferred back to the Processor memory for use in the application ladder program or for transfer back to a SCADA host.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• Configuration Connector - RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit)
• Application Serial port (PRT1, PRT2) (Serial Modules) - (3) RJ45 RS-232/422/485 Application ports
