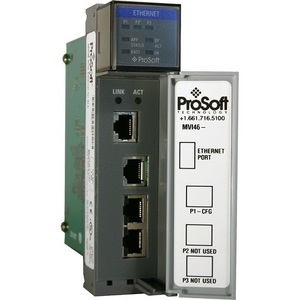

MVI46-DFNT ProSoft Technology EtherNet/IP Client/Server Module

The EtherNet/IP Client/Server Network Interface Module allows SLC processors to interface with EtherNet/IP protocol (Explicit Messaging) compatible devices and hosts. The SLC 5/05 with the MVI46-DFNT module provides a second EtherNet/IP port to a separate subnet for communicating with a HMI or SCADA host. For other SLC processors the module provides a serial pass-thru channel 0 service for remote Ethernet programming and troubleshooting.

Features and Benefits
-The MVI46-DFNT module is a single slot solution that provides a powerful connection between Rockwell Automation's SLC processor and EtherNet/IP (DF1 for Ethernet) network applications. -The module can send read or write commands to remote devices on the EtherNet/IP network. The MVI46-DFNT also has 20 servers that allow the module to receive commands from remote devices. The MVI46-DFNT Pass-Through server allows the user to edit and transfer the SLC ladder logic using an Ethernet connection. Up to 100 commands can be configured by the user.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• Configuration Connector - RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit)
• Ethernet Port (Ethernet Modules) - RJ45 Connector, Link and activity LED indicators, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
