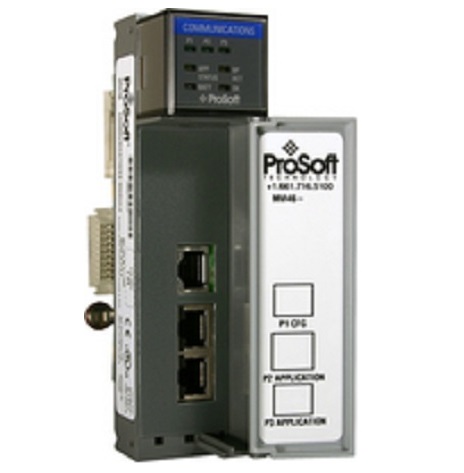

MVI46-DNP ProSoft Technology 3.0 Master/Slave Module for SLC

The DNP 3.0 Master/Slave Network Interface Module allows SLC processors to interface with the many field devices that support the DNP protocol. DNP (Distributed Network Protocol) is an open communication protocol developed to achieve interoperability among systems specifically in the electric utility, oil & gas and water/wastewater industries. This non-proprietary protocol, available worldwide, was designed to optimize the transmission of data acquisition information and control commands. It is a highly efficient and reliable communications protocol between substation computers, RTUs, IEDs and master stations. DNP is also a layered protocol, featuring time stamping and True Report by Exception (TRBE). These features allow the MVI46-DNP module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The module supports DNP Subset Level 2 features and some of the Level 3 features allowing the many SCADA and field devices supporting the DNP protocol to be integrated into the SLC platform. The module acts as an input/output module between the DNP network and the SLC backplane. The data transfer from the SLC processor is asynchronous from the actions on the DNP network. Databases are user defined and stored in the module to hold the data required by the protocol.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• Configuration Connector - RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit)
• Application Serial port (PRT1, PRT2) (Serial Modules) - Two RJ45 RS-232/422/485 Application ports
