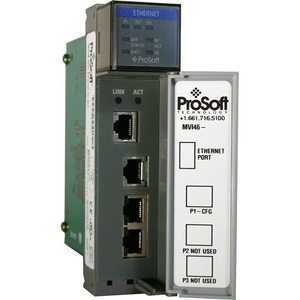

MVI46-DNPSNET ProSoft Technology DNP 3.0 Ethernet Server Module

The DNP 3.0 Ethernet Server Network Interface Module allows SLC processors to interface with the many field devices that support the DNP protocol over Ethernet. DNP (Distributed Network Protocol) is an open communication protocol developed to achieve interoperability among systems specifically in the electric utility, oil & gas and water/wastewater industries. This non-proprietary protocol, available worldwide, was designed to optimize the transmission of data acquisition information and control commands. It is a highly efficient and reliable communications protocol between substation computers, RTUs, IEDs and master stations. DNP is also a layered protocol, featuring time stamping and True Report by Exception (TRBE). These features allow the MVI46-DNPSNET module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The MVI46-DNPSNET (Distributed Network Protocol Module over Ethernet) allows Rockwell Automation SLC processors to easily communicate with other DNP protocol-compatible devices. -The module supports DNP subset level 2 features and some Level 3 features. The MVI46-DNPSNET module acts as an input/output module between the DNP Ethernet network and the Rockwell Automation backplane. The data transfer from the SLC processor is asynchronous from the actions on the DNP network. Databases are defined in the module to house the data required by the protocol and transferred using M0/M1 files.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• Configuration Connector - RJ45 RS‑232 Connector (RJ45 to DB-9 cable shipped with unit)
• Ethernet Port (Ethernet Modules) - RJ45 Connector Link and activity LED indicators, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
