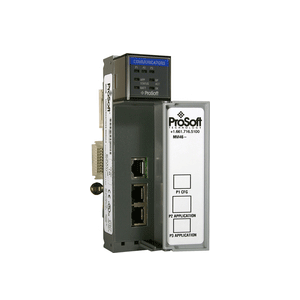

MVI46-PDPMV1 ProSoft Technology PROFIBUS DP-V1 Master Module

The MVI46 PROFIBUS DP-V1 Master Network Interface Module allows SLC processors to easily communicate with slave devices supporting PROFIBUS DP-V0 and DP-V1 protocol. The module acts as an input/output module between the PROFIBUS network and the processor supporting complete Master specifications according to IEC 61158.

Features and Benefits
-The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DP-V1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DP-V0 and DP-V1 protocol.
-The module acts as an input/output module between the PROFIBUS network and the SLC processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.

• Specifications
• Form Factor - Single Slot SLC chassis compatible
• Backplane current load - 800 mA @ 5.1 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Relative Humidity - 5% to 95% (without condensation)
• Processor - Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
