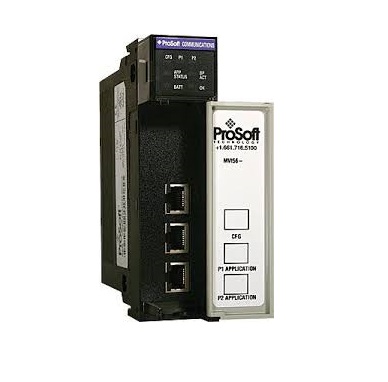

MVI56-101S ProSoft Technology Slave Network Module ControlLogix

The MVI56 IEC 60870-5-101 Slave Network Interface Module is the fastest and easiest way to add IEC 60870-5-101 protocol interface connectivity for the ControlLogix platform. The module has two powerful and highly configurable IEC 60870-5-101 Slave ports, allowing the many SCADA and field devices supporting the IEC protocol to be integrated into the ControlLogix platform. The MVI56-101S is designed to address applications where a host system using the IEC 60870-5-101 protocol must communicate with a ControlLogix processor. Functionality of the IEC protocol is very similar to the DNP 3.0 protocol which features time stamping and True Report by Exception (TRBE). These features allow the MVI56-101S module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The MVI56-101S Edition 2 module is the best way to add IEC 60870-5-101 protocol interface support to the ControlLogix platform. This module has two powerful and highly-configurable IEC 60870-5-101 Slave serial ports, allowing many SCADA and field devices using this IEC protocol to be integrated into the ControlLogix platform.
-The module acts as an input/output module between the IEC 60870-5-101 telecontrol network and the Rockwell Automation ControlLogix backplane. The data transfer from the ControlLogix processor is asynchronous from the actions on the network. A 5000-word register space in the module exchanges data between the processor and the telecontrol network.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 0° C to 60° C (32° F to 140° F )
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
