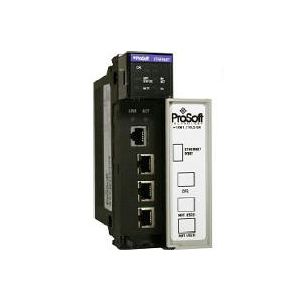

MVI56-104S ProSoft Technology Ethernet Server Module ControlLogix

The MVI56 IEC 60870-5-104 Server Network Interface Module allows ControlLogix processors to interface easily with IEC 60870-5-104 protocol-compatible hosts. The MVI56-104S module has been designed to address applications where a device using the IEC 60870-5-104 protocol needs to communicate with a ControlLogix processor. Functionality of the IEC protocol is very similar to the DNP 3.0 protocol which features time stamping and True Report by Exception (TRBE). These features allow the MVI56-104S module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The MVI56-104S module acts as an input/output module between the IEC 60870-5-104 Ethernet network and the Rockwell Automation backplane. The data transfer from the ControlLogix processor is asynchronous from the actions on the network. A 4000-word register space in the module exchanges data between the processor and the Ethernet network.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
