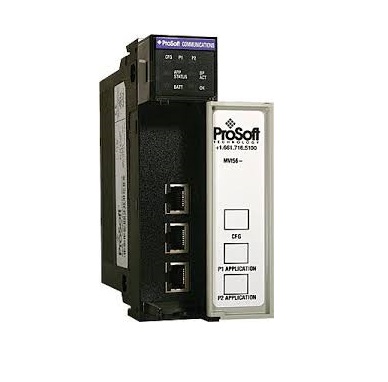

MVI56-ADM ProSoft Technology ‘C’ Programmable Application Module

The MVI56 Application Development Module is a ControlLogix backplane compatible module that allows user-developed 'C' applications to operate on the ControlLogix platform. A great way to speed up custom ASCII data communications or to protect a proprietary algorithm, the ADM is a powerful tool for the ControlLogix platform.

Features and Benefits
-Powerful platform for developing and running 'C' applications on Rockwell Automation's ControlLogix processors. The MVI56-ADM module is a single slot, backplane compatible solution for the Rockwell Automation ControlLogix platform. This module is a powerful and programmable solution supporting two fully isolated serial ports allowing the many serial field devices to be integrated into the ControlLogix platform.
-PRT1 and PRT2 are jumper configured for direct or Multidrop field communication. The application program can be written to control the two application ports independently, allowing maximum flexibility in the design.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - -25° to 70°C (-13° to 158°F) - MVI56E-MNETXT
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Battery Status (ERR), Application Status (APP), Module Status (OK)
• 4-Character, Scrolling, Alpha-Numeric LED Display - Shows Module, Version, IP, Application Port Setting, Port Status, and Error Information
• Debug/Configuration/Application Ethernet port (E1)
• Ethernet Port - 10/100 Base-T, RJ45 Connector, for CAT5 cable Link and Activity LED indicators
• Auto-crossover cable detection
• Shipped with Unit - 5-foot Ethernet straight-through cable
