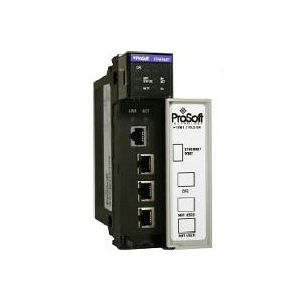

MVI56-ADMNET ProSoft Technology ‘C’ Programmable Module

The MVI56 Application Development Communication Module with Ethernet is a ControlLogix backplane compatible module that allows Rockwell Automation ControlLogix processors to interface easily with Ethernet protocol (Explicit Messaging) compatible devices and hosts utilizing custom 'C' code. Devices commonly supporting the protocol include Rockwell Automation PLCs, and host HMI systems.

Features and Benefits
-The ADMNET module is a powerful solution that will support both Client and Server applications. This broad support enables the module to function as a data collection client, or as a server to another host. Applications for the module are found in most industries, especially Manufacturing, Oil and Gas, Electrical Power and Food processing. -The MVI56-ADMNET module is a single slot, backplane compatible solution for the ControlLogix platform. This module is a powerful and programmable solution supporting two fully isolated serial ports and one Ethernet port allowing the many field devices to be integrated into the ControlLogix platform.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
