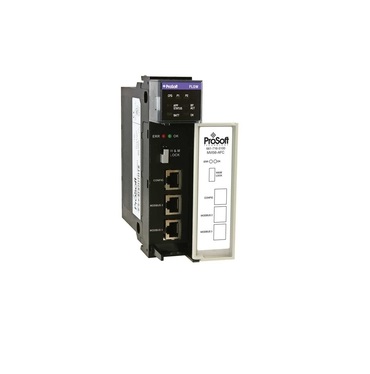

MVI56-AFC ProSoft Technology Gas & Liquid Flow Computer ControlLogix

The MVI56 Gas and Liquid Flow Computer Module is a ControlLogix backplane compatible module that allows ControlLogix processors to easily support flow applications performing measurement of hydrocarbon gases or liquids using AGA 3, 7, 8 and API MPMS Chapters 11 and 12 measurement standards.

The module calculates flow rates, accumulated volumes, accumulated mass and accumulated energy (heating value). The calculation results are transferred back to the Processor memory for use in the application ladder program or for transfer back to a SCADA host.

Features and Benefits
Certified Custody Transfer -
Gas measurement is accurate to the degree that it is Industry Canada Certified for custody transfer
Gas measurement is accurate to the degree that it is Industry Canada Certified for custody transfer
Licensed Backplane Technology -
Manufactured under license from Rockwell Automation
High-speed data transfer between MVI56 module and ControlLogix processor

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
