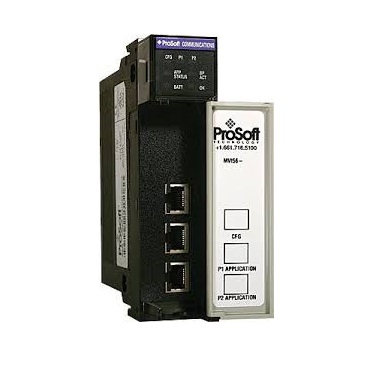

MVI56-BAS ProSoft Technology BASIC Communication Module

This single-slot module is a powerful solution that allows the large installed base of legacy BASIC programs for the 1771-DB and 1747-BAS modules to be migrated to the ControlLogix platform with minimal effort.

Features and Benefits
-Create BASIC programs to transfer data between the ControlLogix and the MVI56-BAS module -Create foreign device interface for specific applications and easily integrate the device with the ControlLogix processor
-Interface to many devices that use ASCII interface to a ControlLogix backplane such as modems, printers, bar code readers, and scales
-Save ControlLogix processor memory by running math algorithms
-The module acts as DF1 full-duplex device or a DF1 half-duplex slave
-The BASIC programs are stored in the MVI56-BAS Compact Flash disk allowing the user to easily backup the BASIC programs to another Compact Flash disk or to a local PC. Up to 24065 Bytes of RAM are available.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
