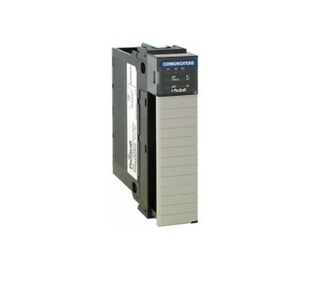

MVI56-BSAPS ProSoft Technology Bristol Babcock Serial Slave Module

The MVI56 Bristol Babcock Serial Slave Module allows Rockwell Automation ControlLogix I/O compatible processors to interface easily with Bristol Babcock Serial communication devices.

Features and Benefits
-The Bristol Babcock Synchronous/Asynchronous Communication Protocol (BSAP) is the foundation for a proprietary network that has a tree structured topology. This open-ended topology supports a variety of configurations which may include one or more nodes at each of up to six levels. Messages can be sent between nodes on the same level or on different levels. Messages can be sent between nodes (local message only). Each message is uniquely identified and has an error checking code associated with it.
-Slave implementation
-Support for the storage and transfer of internal database registers to/from the ControlLogix processor's controller tags
-Two ports to emulate a BSAP slave RTU
-Peer-to-Peer communication for Local BSAP formatted messages – slave to master only.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature0 to 60°C (32 to 140°F)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration/Application Ethernet port (E1)
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration cable
