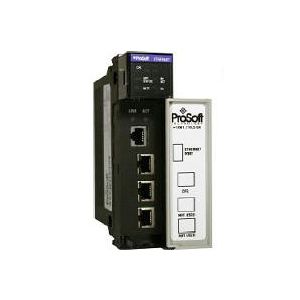

MVI56-DNPSNET ProSoft Technology Ethernet Server Module

The DNP 3.0 Ethernet Server Network Interface Module allows ControlLogix processors to interface with the many field devices that support the DNP protocol over Ethernet. DNP (Distributed Network Protocol) is an open communication protocol developed to achieve interoperability among systems specifically in the electric utility, oil & gas and water/wastewater industries. This non-proprietary protocol, available worldwide, was designed to optimize the transmission of data acquisition information and control commands. It is a highly efficient and reliable communications protocol between substation computers, RTUs, IEDs and master stations. DNP is also a layered protocol, featuring time stamping and True Report by Exception (TRBE). These features allow the MVI56-DNPSNET module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The MVI56-DNPSNET (Distributed Network Protocol Module over Ethernet) allows Rockwell Automation ControlLogix processors to easily communicate with other DNP protocol-compatible devices. -The module supports DNP subset level 2 features and some Level 3 features. The MVI56-DNPSNET module acts as an input/output module between the DNP Ethernet network and the Rockwell Automation backplane. The data transfer from the ControlLogix processor is asynchronous from the actions on the DNP network. Databases are defined in the module to house the data required by the protocol.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
