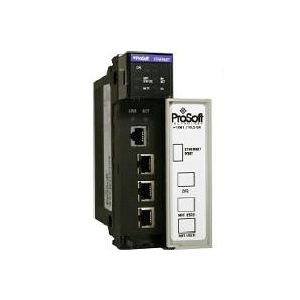

MVI56-GEC ProSoft Technology Generic ASCII Ethernet Module

The MVI56 Generic ASCII Ethernet Interface module is designed to allow ControlLogix processors to interface easily with ASCII devices using the TCP/IP protocol and the ControlLogix processor. Compatible devices may be either ASCII instruments with Ethernet built-in or Ethernet connection via a thin server to the existing ASCII device.

Features and Benefits
-Five servers and clients are present on the module permitting both the reception and transmission of data between the Rockwell Automation processor and attached devices.
-The MVI56-GEC module is a powerful communication interface for ControlLogix platform processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data access between the module and the ControlLogix processor.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature -0° C to 60° C (32° F to 140° F)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration/Application Ethernet port (E1)
• Ethernet Port - RJ45 connection 10/100 Mbit Ethernet support (auto-sensing) Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
• CFG Port - RJ45 (DB-9M with supplied cable) RS-232 only
