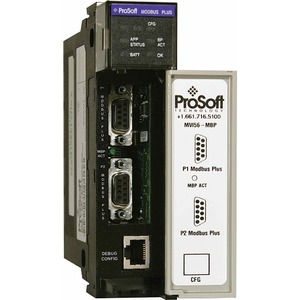

MVI56-MBP ProSoft Technology Modbus Plus Module ControlLogix

The MVI56-MBP Modbus Plus Communication Module allows ControlLogix compatible processors to interface easily with other Modbus Plus protocol compatible devices.

The Modbus Plus module is a powerful module designed with both Master and Slave support, enabling easy connection to other Modbus devices (Modicon processors and many others).

Features and Benefits
-Single Slot - 1756 backplane compatible -Local or remote rack
-The MVI56-MBP is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module.
-10/100 Ladder Logic is used for data transfer between module and processor.
- Configurable parameters for the client include:
-Configuration data obtained through user-defined ladder. Sample ladder file included.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 0° C to 60° C (32° F to 140° F )
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Modbus Plus Connector - Two DB9 Female Standard Modbus Plus connectors
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
