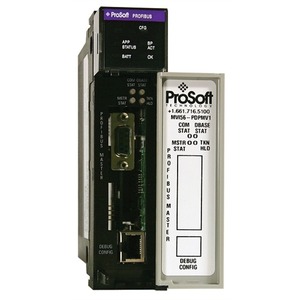

MVI56-PDPMV1 ProSoft Technology PROFIBUS DP-V1 Master Module

The MVI56 PROFIBUS DP-V1 Master Network Interface Module allows ControlLogix processors to easily communicate with slave devices supporting PROFIBUS DP-V0 and DP-V1 protocol. The module acts as an input/output module between the PROFIBUS network and the processor supporting complete Master specifications according to IEC 61158.

Features and Benefits
-The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol.
-The module acts as an input/output module between the PROFIBUS network and the ControlLogix processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network. Databases are user-defined and stored in the module to hold the data required by the protocol.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - -25° to 70°C (-13° to 158°F) - MVI56E-MNETXT
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Battery Status (ERR), Application Status (APP), Module Status (OK)
• 4-Character, Scrolling, Alpha-Numeric LED Display - Shows Module, Version, IP, Application Port Setting, Port Status, and Error Information
• Debug/Configuration/Application Ethernet port (E1)
• Ethernet Port - 10/100 Base-T, RJ45 Connector, for CAT5 cable Link and Activity LED indicators
• Auto-crossover cable detection
• Shipped with Unit - 5-foot Ethernet straight-through cable
