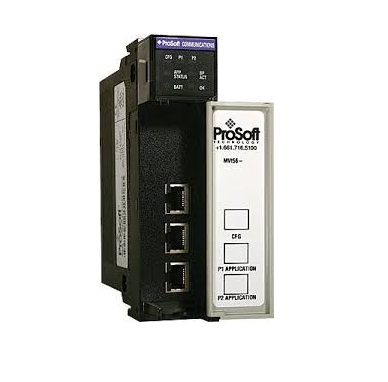

MVI56-SMGC ProSoft Technology SM General Protocol Module

The MVI56 SM General Communication Protocol Module allows ControlLogix I/O compatible processors to interface easily with SM General Communication Protocol devices over an Ethernet network.

Features and Benefits
-The MVI56-SMGC module interfaces an Ethernet communication device using the SM General Communication Protocol with the ControlLogix processor. A single client is present in the module to interface with a single server. The client permits both the reception and transmission of data between the ControlLogix processor and attached device.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 0° C to 60° C (32° F to 140° F )
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Module Status, Backplane Transfer Status, Application Status, Serial Activity
• Debug/Configuration port (CFG)
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only
• Application ports (PRT1 & PRT2)
• Shipped with Unit - RJ45 to DB-9M adapter cable, 6-foot RS-232 configuration cable
