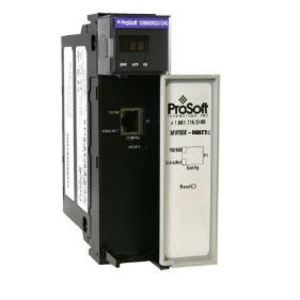

MVI56E-61850S ProSoft Technology IEC Server Module for ControlLogix

The MVI56E-61850S Ethernet Communication Module allows Rockwell Automation® ControlLogix® PACs to emulate Intelligent Electronic Devices on an IEC 61850 Ethernet network to SCADA systems. Now your non-smart electrical substation devices, such as transformers and switchgear, can present their data as IEC 61850 IEDs to the SCADA system.

The module comes with an Add-On Instruction to be used with RSLogix™ 5000/Studio 5000™ for easier configuration and setup. Remote diagnostics of the unit can be viewed through controller tags in your ControlLogix® processor, reducing downtime.

Features and Benefits
-The ControlLogix® PAC is able to emulate multiple Intelligent Electronic Devices on an IEC 61850 network.
-Add-On Instruction provides logical definitions for I/O, module status and control data easing configuration and maintenance of the module.
-ProSoft Discovery Service (PDS) software is used to initially set the module’s IP address, so you don’t have to change your PC to the default subnet of the module.
-Module functions as an IEC 61850 Server, allowing it to interface with SCADA systems.

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature 32°F to 140°F (0°C to 60°C)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Battery Status (ERR), Application Status (APP), Module Status (OK)
• 4-Character, Scrolling, Alpha-Numeric LED Display - Shows Module, Version, IP, Application Port Setting, Port Status, and Error Information
• Debug/Configuration/Application Ethernet port (E1)
• Ethernet Port - 10/100 Base-T, RJ45 Connector, for CAT5 cable Link and Activity LED indicators, Auto-crossover cable detection
• Shipped with Unit - 5-foot Ethernet straight-through cable
