MVI56E-MCM/MCMXT ProSoft Technology Modbus Master/Slave Module

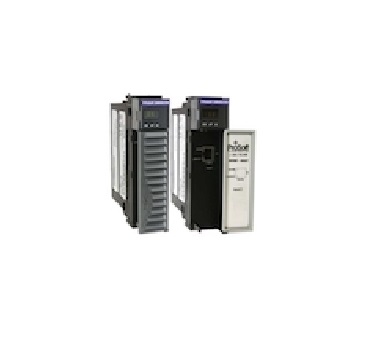

The MVI56E Communication Module allows for Modbus Master and/or Slave connectivity from Rockwell Automation® ControlLogix® processors to Modbus RTU/ASCII devices. Each MVI56E port can be configured as a Master or Slave.

The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on the ControlLogix backplane, making Modbus data appear as I/O data to the processor. Two independently configurable serial ports can operate on the same or different Modbus networks. The MVI56E-MCM is designed for standard process applications and the MVI56E-MCMXT is designed for the Logix-XT™ control platform, allowing it to operate in extreme environments. It can tolerate higher operating temperatures, and has conformal coating to protect it from harsh or caustic conditions.

• Specifications
• Backplane Current Load - 800 mA @ 5 Vdc, 3 mA @ 24 Vdc
• Operating Temperature - 0°C to 60°C (32°F to 140°F) - MVI56E-MCM
• -25°C to 70°C (-13°F to 158°F) - MVI56E-MCMXT
• Storage Temperature :: -40°C to 85°C (-40°F to 185°F)
• Shock - 30g Operational , 50g non-operational
• Vibration: 5 g from 10 to 150 Hz
• Relative Humidity - 5 to 95% (without condensing)
• LED Indicators - Battery Status (ERR), Application Status (APP), Module Status (OK)
• 4-Character, Scrolling, Alpha-Numeric LED Display - Shows Module, Version, IP, Port Master/SlaveSetting, Port Status, and Error Information
