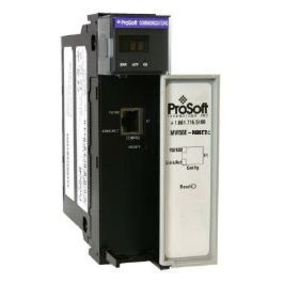

MVI56E-MNETR ProSoft Technology Modbus Client/Server Module

The Modbus TCP/IP Client/Server Enhanced Communication Module with Reduced Data Block allows Rockwell Automation ControlLogix processors to interface easily with Modbus TCP/IP-compatible devices, such as Modicon Programmable Automation Controllers (PACs) and a wide variety of Modbus TCP/IP-compatible instruments and devices.

The MVI56E-MNETR uses a reduced Input/Output (I/O) data image block size for transferring data between itself and a ControlLogix processor. This makes it ideal for remote rack applications using ControlNet or EtherNet/IP process networks. The module also works well for applications that require redundant ControlLogix processors.

Features and Benefits
-Backward-Compatible
-RSLogix 5000 Integrated
-Reduced Input/Output Image Size
-Graphical User Interface Software
-Web-enabled Ethernet port with Discovery Service

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - -25° to 70°C (-13° to 158°F) - MVI56E-MNETXT
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Battery Status (ERR), Application Status (APP), Module Status (OK)
• 4-Character, Scrolling, Alpha-Numeric LED Display - Shows Module, Version, IP, Application Port Setting, Port Status, and Error Information
• Debug/Configuration/Application Ethernet port (E1)
• Ethernet Port - 10/100 Base-T, RJ45 Connector, for CAT5 cable Link and Activity LED indicators
• Auto-crossover cable detection
• Shipped with Unit - 5-foot Ethernet straight-through cable
