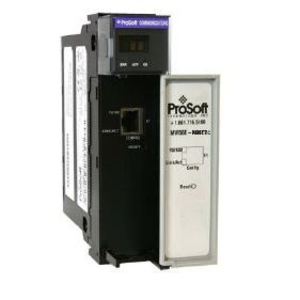

MVI56E-SIE ProSoft Technology Siemens Industrial Ethernet Module

The MVI56E-SIE Siemens Industrial Ethernet Communication Module allows Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to interface easily as an Ethernet Client with up to a maximum of 20 Siemens S7-200, S7-300, S7-400, S7-1200, and S7-1500 PLCs operating as Ethernet servers.

The module uses ProSoft Configuration Builder (PCB) which provides a graphical configuration tool for management of module configuration files, as well as viewing communication and module diagnostic information using the high-speed Ethernet port.

Features and Benefits
-Single-slot 1756 ControlLogix backplane compatible
-10/100 Mbps auto crossover detection Ethernet configuration and application port
-User-definable module data memory mapping of up to 5000 16-bit registers
-CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules and EtherNet/IP pass-through communication
-Add-On Instructions (AOI) are used for data transfer between module and processor
-4-character, alpha-numeric, scrolling LED display of status and diagnostics data
-ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
-Personality Module - a non-volatile, industrial-grade Compact Flash (CF) card used to store network and module configuration, allowing quick in-the-field product replacement by transferring the CF card

• Specifications
• Backplane Current Load - 800 mA @ 5.1 VDC, 3 mA @ 24 VDC
• Operating Temperature - 0°C to 60°C (32°F to 140°F)
• Storage Temperature :: -40° C to 85° C (-40° F to 185° F )
• Shock - 30 g Operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative Humidity - 5% to 95% (non-condensing)
• LED Indicators - Battery Status (ERR), Application Status (APP), Module Status (OK)
• 4-Character, Scrolling, Alpha-Numeric LED Display - Shows Module, Version, IP, Application Port Setting, Port Status, and Error Information
• Debug/Configuration/Application Ethernet port (E1)
• Ethernet Port - 10/100 Base-T, RJ45 Connector, for CAT5 cable Link and Activity LED indicators, Auto-crossover cable detection
• Shipped with Unit - 5-foot Ethernet straight-through cable
