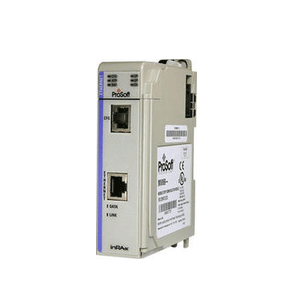

MVI69-101M ProSoft Technology IEC 60870-5-101 Master Module

The MVI69 IEC 60870-5-101 Master Network Interface Module allows CompactLogix processors to interface easily with IEC 60870-5-101 Slave devices. The MVI69-101M module interfaces up to 32 serial communication devices with the CompactLogix processor. Two communication ports on the module act as controlling devices (Masters) to interface with controlled devices on their own networks. Each port is individually configurable. The MVI69-101M is the ideal solution for many applications where IEC-compatible devices must communicate with the ControlLogix platform. Compatible devices include relays, breakers, sub-station communication modules and other serial communication devices. Functionality of the IEC protocol is very similar to the DNP 3.0 protocol which features time stamping and True Report by Exception (TRBE). These features allow the MVI69-101M module to send a report to the processor without being polled, providing real time data transmission in critical situations.

Features and Benefits
-The MVI69-101M module interfaces up to 32 serial communication devices with the CompactLogix processor. Two communication ports on the module act as controlling devices (masters) to interface with controlled devices on their own networks. Each port is individually configurable and can be set for balanced or unbalanced mode. Data is exchanged between the serial network and the CompactLogix processor using the internal database contained in the module and direct control by the processors ladder logic.

• Specifications
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp - -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• LED Indicators - Battery and Module Status, Application Status, Serial Port Activity, CFG Port Activity
• CFG Port (CFG) - RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking
• App Ports (P1,P2) (Serial modules) - RS-232, RS-485 or RS-422 (jumper selectable), RJ45 (DB-9F with supplied cable), RS-232 handshaking configurable, 500 V Optical isolation from backplane
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
