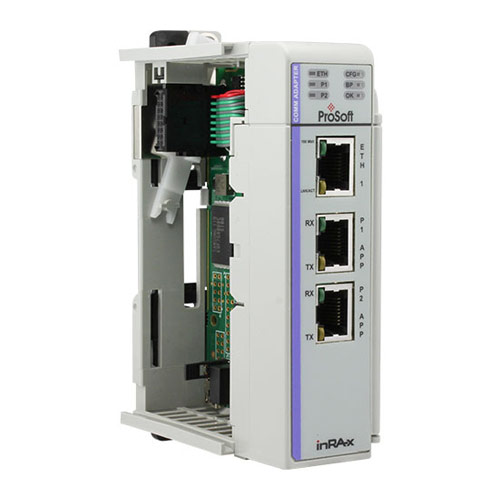

TheMVI69-101S IEC 60870-5-101 Slave Communication Module allows CompactLogixTM and MicroLogixTM 1500 LRP processors to interface easily with IEC 60870-5-101 protocol compatible hosts.

The MVI69-101S module is the fastest and easiest way to add IEC 60870-5-101 protocol interface support to the CompactLogix and MicroLogix 1500 LRPplatforms. It is a single-slot, backplane compatible solution. It also has two powerful and highly configurable redundant IEC 60870-5-101 slave ports,allowing the many SCADA and field devices supporting the IEC protocol to be integrated into the CompactLogix and MicroLogix 1500 platforms.


Features and Benefits
-Licensed Backplane Technology
-IEC 60870-5-101 slave protocol interface
-ProSoft Configuration Builder software included
-Configuration data obtained from configuration text file downloaded to module. A sample configuration file is included.
-Backed by ProSoft Technology
  • Specifications
  • Dimensions - Standard 1769 Single-slot module
  • Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
  • Operating Temp - 32° F to 140° F (0° C to 60° C)
  • Storage Temp - -40° F to 185° F (-40° C to 85° C)
  • Relative Humidity - 5% to 95% (without condensation)
  • LED Indicators - Battery and Module Status, Application Status, Serial Port Activity, CFG Port Activity
  • CFG Port (CFG) - RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking
  • App Ports (P1,P2) (Serial modules) - RS-232, RS-485 or RS-422 (jumper selectable), RJ45 (DB-9F with supplied cable), RS-232 handshaking configurable, 500 V Optical isolation from backplane
  • Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
