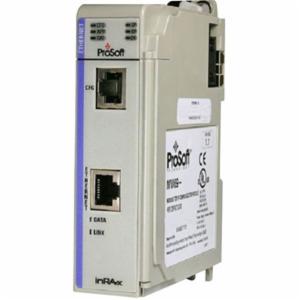

MVI69-103M ProSoft Technology IEC 60870-5-103 Master Module

TheMVI69 IEC 60870-5-103 Master Communication Module allows Rockwell Automation CompactLogix I/O compatible processors to interface easily with IEC 60870-5-103 master (controlled unit) protection devices. Devices commonly supporting the protocol include relays, breakers, sub-station Communication Modules and other serial communication devices used in power monitoring.

Features and Benefits
-The MVI69-103M supports up to 16 total field devices between the module's two IEC 60870-5-103 Master ports. The module's communication ports can each be independently configured, allowing two separate field networks to be implemented. The field device data is exchanged between the MVI module and the CompactLogix processor over the backplane.
-The MVI69-103M module is a powerful communication interface for Rockwell Automation CompactLogix platform processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data access to the CompactLogix processor.

• Specifications
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp - -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• LED Indicators - Battery and Module Status, Application Status, Serial Port Activity, CFG Port Activity
• CFG Port (CFG) - RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking
• App Ports (P1,P2) (Serial modules) - RS-232, RS-485 or RS-422 (jumper selectable), RJ45 (DB-9F with supplied cable), RS-232 handshaking configurable, 500 V Optical isolation from backplane
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
