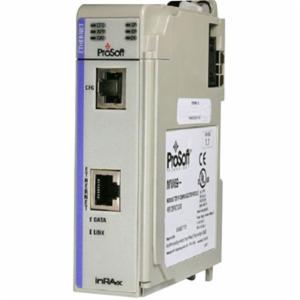

MVI69-104S ProSoft Technology IEC 60870-5-104 Ethernet Server Module

TheMVI69 IEC 60870-5-104 Edition 2 Ethernet Server Communication Module allows Rockwell Automation CompactLogix processors to interface easily with IEC 60870-5-104 protocol hosts. This latest version of ProSoft Technology's IEC-104 server solution has been enhanced with additional IEC-104 Edition 2 data types and Causes for Transmission. These enhancements extend the capability and applicability of an already powerful solution. The new version also offers increased Event Buffer management options.

Features and Benefits
-The MVI69-104S module acts as an input/output module between the IEC-870-5-104 Ethernet network and the CompactLogix backplane. Data transfer between the module and the processor is asynchronous from the actions on the network. Databases are defined by the user for the module to hold data as required by the protocol.
-The MVI69-104S module is a powerful communication interface for CompactLogix platform processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data access to the CompactLogix processor.
-The MVI69-104S module accepts commands from an attached master unit. A port configured as a virtual slave permits a remote master to interact with all data contained in the module. This data can be derived from the CompactLogix processor. The remote master device uses the fully-configured databases in the module to control outputs and monitor inputs. The module can operate in balanced or unbalanced mode.

• Specifications
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp - -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• LED Indicators - Battery and Module Status, Application Status, Serial Port Activity, CFG Port Activity
• CFG Port (CFG) - RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking
• App Ports (P1,P2) (Serial modules) - RS-232, RS-485 or RS-422 (jumper selectable), RJ45 (DB-9F with supplied cable), RS-232 handshaking configurable, 500 V Optical isolation from backplane
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
