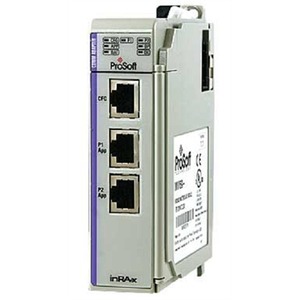

MVI69-ADMNET ProSoft Technology C’ Programmable Application

TheMVI69-ADMNET 'C' Programmable Application Development Module with Ethernet is a CompactLogix backplane compatible module that allows Rockwell Automation CompactLogix processors to interface with other Ethernet protocol compatible devices and hosts utilizing custom 'C' code.

Features and Benefits
-Single-slot - The ADMNET solution is a powerful module designed with both Client and Server support. This broad support enables the module to function as a data collection sub-master, or to be a powerful slave as a remote off an HMI host. Applications for the module are found in most industries, especially Manufacturing, Oil and Gas, Electrical Power and Food processing.
-The MVI69-ADMNET module is a single slot, backplane compatible solution for the Rockwell Automation CompactLogix platform. This module is a powerful and programmable solution supporting one fully isolated serial port, one non-isolated serial port, and one Ethernet port, allowing the many field devices to be integrated into the CompactLogix platform.
-The MVI69-ADM module has two serial and one Ethernet port, one serial port is isolated for field interfaces.

• Specifications
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp - -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• LED Indicators - Battery and Module Status, Application Status, Serial Port Activity, CFG Port Activity
• CFG Port (CFG) - RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking
• App Port (Ethernet modules) - 10/100 Base-T Ethernet compatible interface Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 s, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
