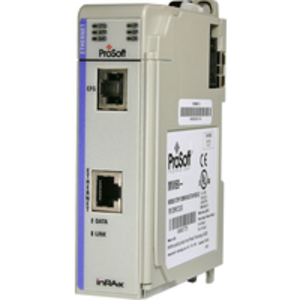

MVI69-DNPSNET ProSoft Technology DNP 3.0 Ethernet Server Module

The MVI69 DNP 3.0 Server Ethernet Communications Module supports the implementation of the DNP 3.0 (Distributed Network Protocol) over Ethernet, allowing CompactLogix processors to easily communicate with host systems supporting the protocol. The module supports DNP Subset Level 2 features and some Level 3 features.

Features and Benefits
-The MVI69-DNPSNET (Distributed Network Protocol Module over Ethernet) allows Rockwell Automation CompactLogix processors to easily communicate with other DNP protocol-compatible devices.
-The module supports DNP subset level 2 features and some Level 3 features. The MVI69-DNPSNET module acts as an input/output module between the DNP Ethernet network and the Rockwell Automation backplane. The data transfer from the CompactLogix processor is asynchronous from the actions on the DNP network. Databases are defined in the module to house the data required by the protocol.

• Specifications
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp - -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• LED Indicators - Battery and Module Status, Application Status, Serial Port Activity, CFG Port Activity
• CFG Port (CFG) - RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking
• App Port (Ethernet modules) - 10/100 Base-T Ethernet compatible interface Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 s, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
