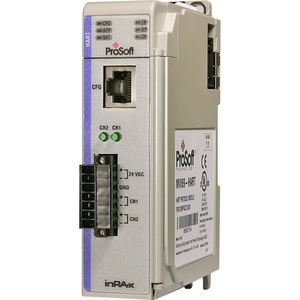

MVI69-HART ProSoft Technology HART Multi drop Module CompactLogix

The MVI69-HART Multi-drop Master Communication Module is designed to allow CompactLogix / MicroLogix processors to interface easily with HART compatible devices. Devices commonly supporting the protocol include pressure, temperature, flow transmitters, as well as other similar instruments commonly found in the process (and other) industry.

Features and Benefits
-Single-slot - 1769 backplane compatible
-The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
-Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included
-Configuration data obtained from configuration text file downloaded to module. A sample configuration file is included.
-Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x

• Specification
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp - -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• LED Indicators - Power and Module Status Application Status, Serial Port Activity and Error Status, HART Channel Activity
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• HART Channels - 2 HART Master channels
• Shipped with Unit - RJ45 to DB-9M adapter cable for configuration port, 6-foot RS-232 null-modem configuration cable, 2-channel HART screw terminal connector with terminals for external, third-party 24 VDC power supply for loop-powered configurations
